1000-H2S-CO2

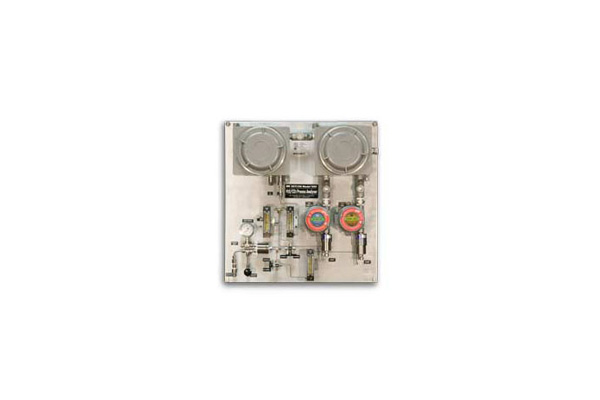

Detcon Model 1000-H2S/CO2 dual process analyzers provide simultaneous and continuous measurement of both H2S and CO2 concentrations. Available ranges for H2S are from 0-10 ppm up to 0-5%. Available ranges for CO2 are from 0-0.3% up to 0-100%. CO2 detection is made using Detcon`s sub-miniature NDIR optical sensor element. H2S detection is made using Detcon`s 3 electrode electrochemical sensor element. The analyzer features microprocessor-based signal-conditioning transmitters with local digital display, fault supervision, calibration mode indicator, alarm relays and an RS-485 serial port. The instrument package is rated for use in electrically classified areas: Class I; Division 1; Groups B, C, and D.
