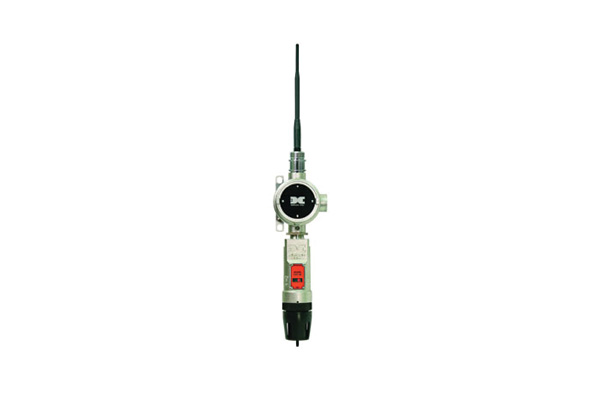

CXT Gas Detection Sensor Assembly

Detcon's Model CXT is a compact, low powered, 2.4GHz wireless sensor that detects for dangerous and harmful combustible and toxic gases. THis environmentally bulletproof gas detector has a built-in display and is powered by either rechargeable or disposable batteries. [av_tab_container position='sidebar_tab sidebar_tab_left' boxed='border_tabs' initial='1'] [av_tab title='CXT-IR Infrared LEL' icon_select='no' icon='ue800' font='entypo-fontello'] Detcon Model CXT-IR SmartWireless� gas detection sensors are easily and economically�deployable in both permanent and temporary installations. This low power sensor assembly�utilizes infrared technology for combustible hydrocarbons. All component parts are rated�for Class 1; Division 1, Groups C, D hazardous areas. This advanced field device consists of a Detcon Model Series CXT low power infrared gas detection sensor, and wireless transceiver�packaged�in a single enclosure.�Power�is provided�by�a disposable battery�pack�capable of continuous operation for greater than 60 days. An optional rechargeable battery pack allows for 5 months operation. Solar power options allow for indefinite operation. An optional disposable �D� cell battery pack is capable of delivering up to 9 months operation. Detcon`s proprietary �Self Healing Mesh� technology operates at 2.4 GHZ and conforms to non licensed radio frequency appliance usage around the world. Wireless network integrity and security is accomplished using direct sequence spread spectrum DSSS programming topology. Wireless applications can be as simple as a single field device communicating with a host display or any number of field devices forming a network of subscribers. Each device in the network is assigned its unique device identification or a UID. Every device in the network can act as a router and repeater for all other devices in the network. This means that subscribers can �hop� through neighboring devices to communicate with each other thereby widening network access points. This unique and innovative technology is designed to create a robust network that automatically routes around congestion and line-of-sight obstacles while improving throughput as subscriber device density increases. Standard network configuration is of the master/slave type (320 Transceiver). An optional�and proprietary technology referred to as �Fault Tolerant Safety Network� (300 Transceiver)�is also available�which�guarantees that no single point of�failure will interrupt communications�between�devices on the rest of�the network, including loss of HMI. Processing�power is, in a sense, shared among all devices. There is no controller dependence. Each�device in the network is capable of acting as the network master, processing real time data. [/av_tab] [av_tab title='CXT-DM-O2 Oxygen' icon_select='no' icon='ue800' font='entypo-fontello'] Detcon Model CXT-DM-O2 SmartWireless� oxygen gas detection sensors are easily and economically deployable in both permanent and temporary installations. These low power sensors assemblies utilize electrochemical technology for a long list of toxic gases. All component parts are rated for Class 1; Division 1, Group C, D hazardous areas. These advanced field devices consist of a Detcon Model Series CXT low power gas detection sensor, and wireless transceiver packaged in a single enclosure. Power is provided by a disposable �C� cell battery pack capable of continuous operation for greater than 60 days. An optional rechargeable battery pack allows for 5 months operation. Solar power options allow for indefinite operation. An optional disposable �D� cell battery pack is capable of delivering up to 9 months operation. Detcon`s proprietary �Self Healing Mesh� technology operates at 2.4 GHZ and conforms to non licensed radio frequency appliance usage around the world. Wireless network integrity and security is accomplished using direct sequence spread spectrum DSSS programming topology. Wireless applications can be as simple as a single field device communicating with a host display or any number of field devices forming a network of subscribers. Each device in the network is assigned its unique device identification or a UID. Every device in the network can act as a router and repeater for all other devices in the network. This means that subscribers can �hop� through neighboring devices to communicate with each other thereby widening network access points. This unique and innovative technology is designed to create a robust network that automatically routes around congestion and line-of-sight obstacles while improving throughput as subscriber device density increases. Standard network configuration is of the master/slave mesh type (320 Transceiver). An optional and proprietary technology referred to as �Fault Tolerant Safety Network� (300 Transceiver) is also available which guarantees that no single point of failure will interrupt communications between devices on the rest of the network, including loss of HMI. Processing power is, in a sense, shared among all devices. There is no controller dependence. Each device in the network is capable of acting as the network master, processing real time data and issuing commands to other devices in the network. [/av_tab] [av_tab title='CXT-DM Toxic' icon_select='no' icon='ue800' font='entypo-fontello'] CXT-DM-NH3 Ammonia Sensor Assembly CXT-DM-AsH3 Arsine Sensor Assembly CXT-DM-Br2 Bromine Sensor Assembly CXT-DM-CO Carbon Monoxide Sensor Assembly CXT-DM-CL2 Chlorine Sensor Assembly CXT-DM-CLO2 Chlorine Dioxide Sensor Assembly (0-1ppm) CXT-DM-CLO2 Chlorine Dioxide Sensor Assembly (0-50ppm) CXT-DM-B2H6 Diborane Sensor Assembly CXT-DM-C2H5OH Ethanol Sensor Assembly CXT-DM-C2H5SH Ethyl Mercaptans Sensor Assembly CXT-DM-C2H4 Ethylene Sensor Assembly CXT-DM-C2H4O Ethylene Oxide Sensor Assembly CXT-DM-F2 Fluorine Sensor Assembly CXT-DM-CH2O Formaldehyde Sensor Assembly CXT-DM-GeH4 Germane Sensor Assembly CXT-DM-N2H4 Hydrazine Sensor Assembly CXT-DM-H2 Hydrogen Sensor Assembly (ppm Range) CXT-DM-H2 Hydrogen Sensor Assembly (4% Range) CXT-DM-H2 Hydrogen Sensor Assembly (1% Range) CXT-DM-HBr Hydrogen Bromide Sensor Assembly CXT-DM-HCL Hydrogen Chloride Sensor Assembly CXT-DM-HCN Hydrogen Cyanide Sensor Assembly CXT-DM-HF Hydrogen Fluoride Sensor Assembly CXT-DM-H2S Hydrogen Sulfide Sensor Assembly CXT-DM-CH3OH Methanol Sensor Assembly CXT-DM-CH3SH Methyl Mercaptans Sensor Assembly CXT-DM-NO Nitric Oxide Sensor Assembly CXT-DM-NO2 Nitrogen Dioxide Sensor Assembly CXT-DM-O3 Ozone Sensor Assembly CXT-DM-PH3 Phosphine Sensor Assembly CXT-DM-SiH4 Silane Sensor Assembly CXT-DM-SO2 Sulfur Dioxide Sensor Assembly [/av_tab] [/av_tab_container]
