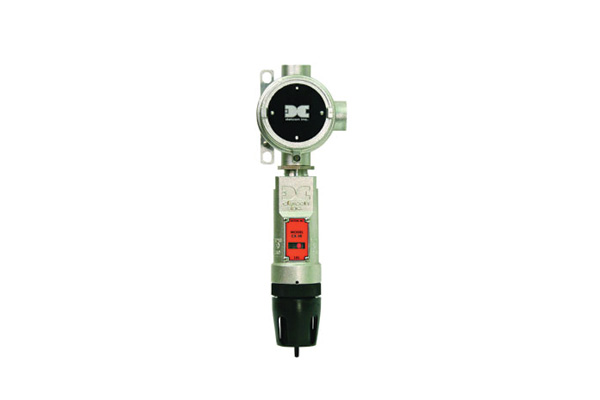

CX Gas Detection Sensor Assembly
The Model CX is a wired version of the Model CXT that can be used with Detcon`s SmartWireless� Site Sentinel CX/CXT Controllers as well as other Detcon control systems. Standard outputs include 4-20 mA, and RS-485 Modbus. [av_tab_container position='sidebar_tab sidebar_tab_left' boxed='border_tabs' initial='1'] [av_tab title='CX-IR Infrared LEL' icon_select='no' icon='ue800' font='entypo-fontello'] Detcon Model CX-IR gas detection sensors are easily and economically deployable in both permanent and temporary installations. These low power sensor assemblies utilize infrared technology for combustible hydrocarbons. Model CX-IR sensors are equipped with standard analog 4-20mA, and Modbus� RTU RS-485 outputs and can be used with Detcon`s SmartWireless� Site Sentinel CX/CXT Controllers as well as other Detcon control systems. Model DM-IR Series sensors feature non-intrusive operator interface and comprehensive fault diagnostics. The sensor is packaged in an electro-polished 316 stainless steel housing fitted with a � inch NPT thread. The plug-in, field replaceable sensor cell features large surface area gold-plated pins that reduce the effects of corrosion in harsh industrial environments. Signal conditioning electronics are completely encapsulated in the sensor housing adding a high level of durability. This innovative design virtually eliminates sensor failure due to water ingress, corrosion, vibration, and transient spikes. The packaging is XP-intrinsically safe. A primary feature of the Model CX-IR is embedded intuitive software that simplifies operator interface by guiding the user through routine calibration, configuration, and fault diagnostic functions using a built-in alpha/numeric display. Each sensor is shipped with a splash guard with integral calibration port. Detcon`s IR combustible hydrocarbon sensors have a long shelf life and are supported by an industry-leading warranty. [/av_tab] [av_tab title='CX-DM Toxic' icon_select='no' icon='ue800' font='entypo-fontello'] Detcon Model CX-DM gas detection sensors are easily and economically deployable in both permanent and temporary installations. These low power sensor assemblies utilize electrochemical technology for a long list of toxic gases. Model CX-DM sensors are equipped with standard analog 4-20mA, and Modbus� RTU RS-485 outputs and can be used with Detcon`s SmartWireless� Site Sentinel CX/CXT Controllers as well as other Detcon control systems. Model DM-CX Series sensors feature non-intrusive operator interface and comprehensive fault diagnostics. The sensor is packaged in an electro-polished 316 stainless steel housing fitted with a � inch NPT thread. The plug-in, field replaceable sensor cell features large surface area gold-plated pins that reduce the effects of corrosion in harsh industrial environments. Signal conditioning electronics are completely encapsulated in the sensor housing adding a high level of durability. This innovative design virtually eliminates sensor failure due to water ingress, corrosion, vibration, and transient spikes. The packaging is XP-intrinsically safe. A primary feature of the Model CX-DM is embedded intuitive software that simplifies operator interface by guiding the user through routine calibration, configuration, and fault diagnostic functions using a built-in alpha/numeric display. Each sensor is shipped with a splash guard with integral calibration port. Detcon`s toxic gas sensors have a long shelf life and are supported by an industry-leading warranty. [/av_tab] [/av_tab_container]
